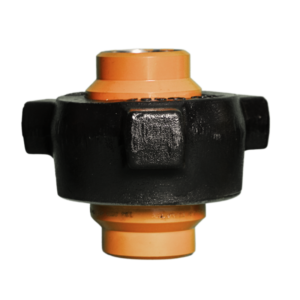

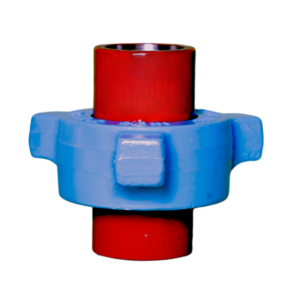

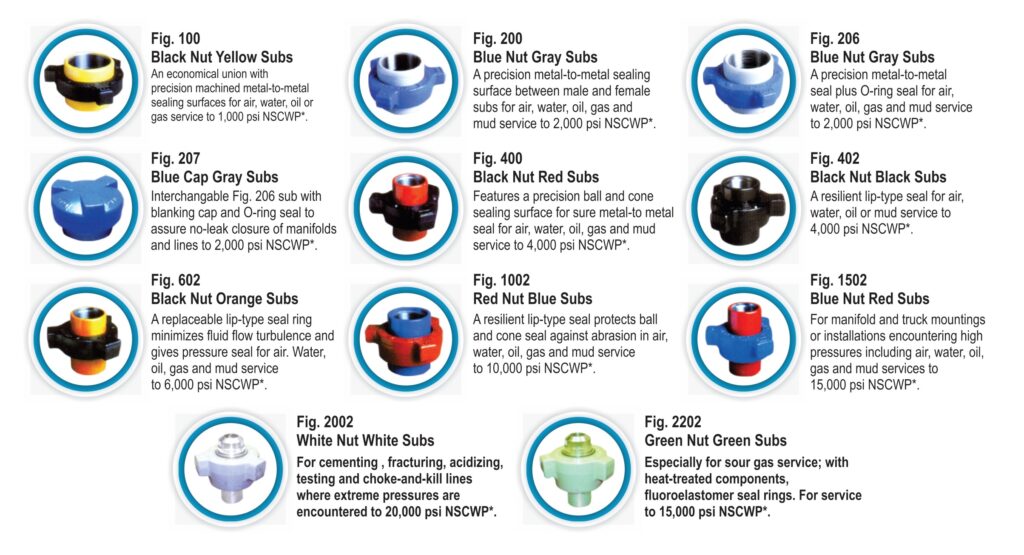

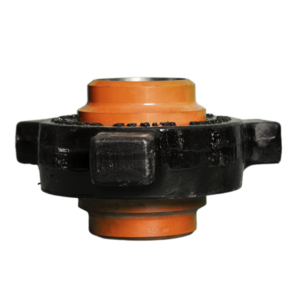

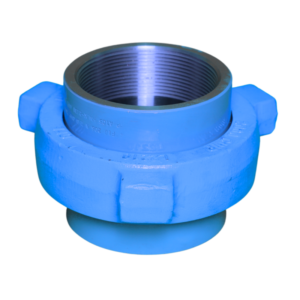

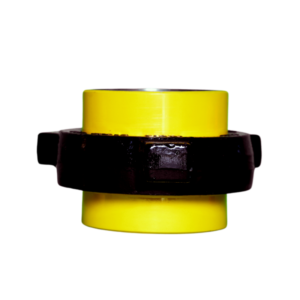

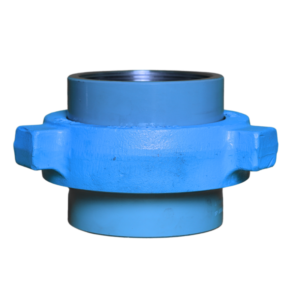

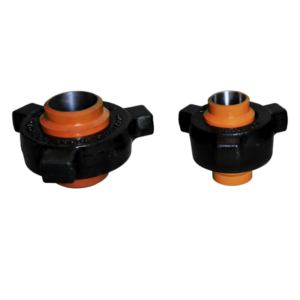

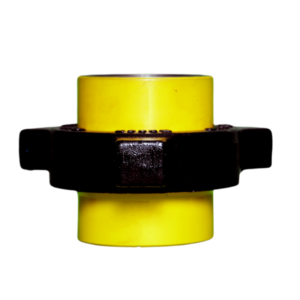

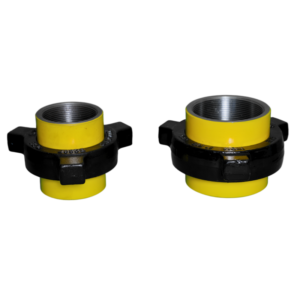

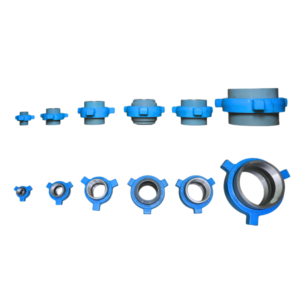

OFC/OFE hammer unions are available in a wide range of sizes and in working pressures to 15,000 psi. Pressure seal, non-pressure seal, and welded styles are offered in various sizes. All OFE hammer unions provide pressure-tight, positive sealing and are available for standard services and sour gas models. OFE hammer unions for sour gas services are specially heat-treated for controlled hardness and utilises fluorocarbon elastomer seal rings.

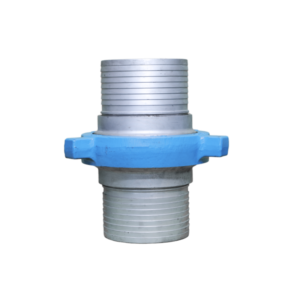

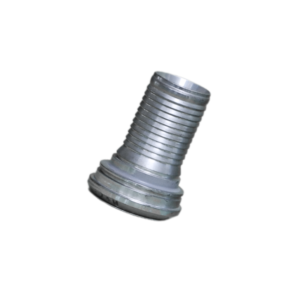

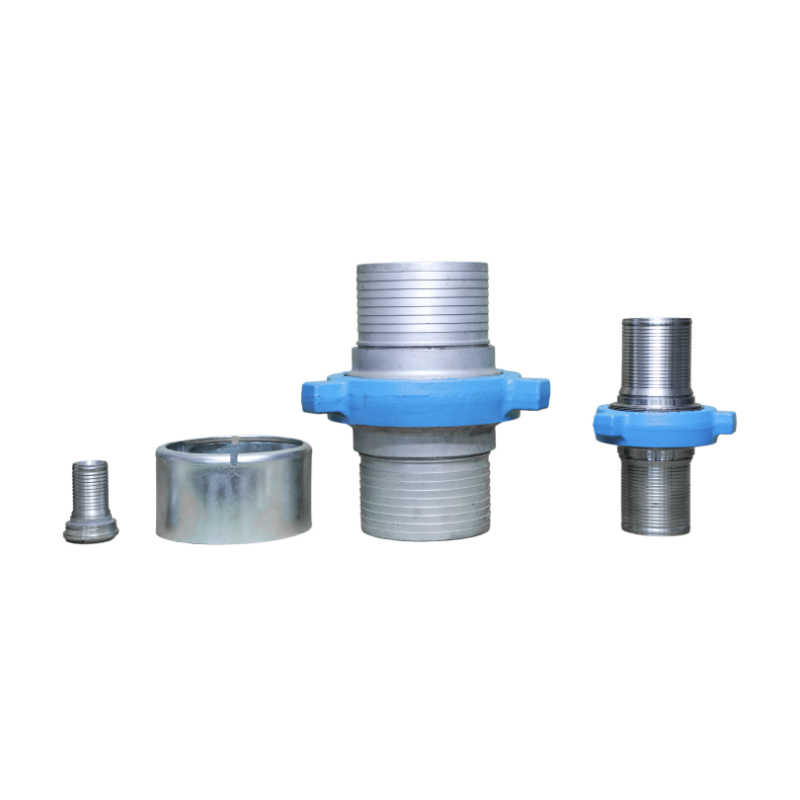

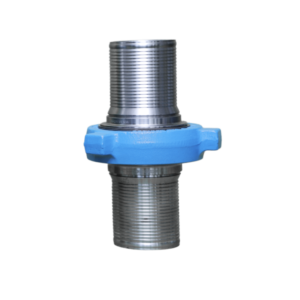

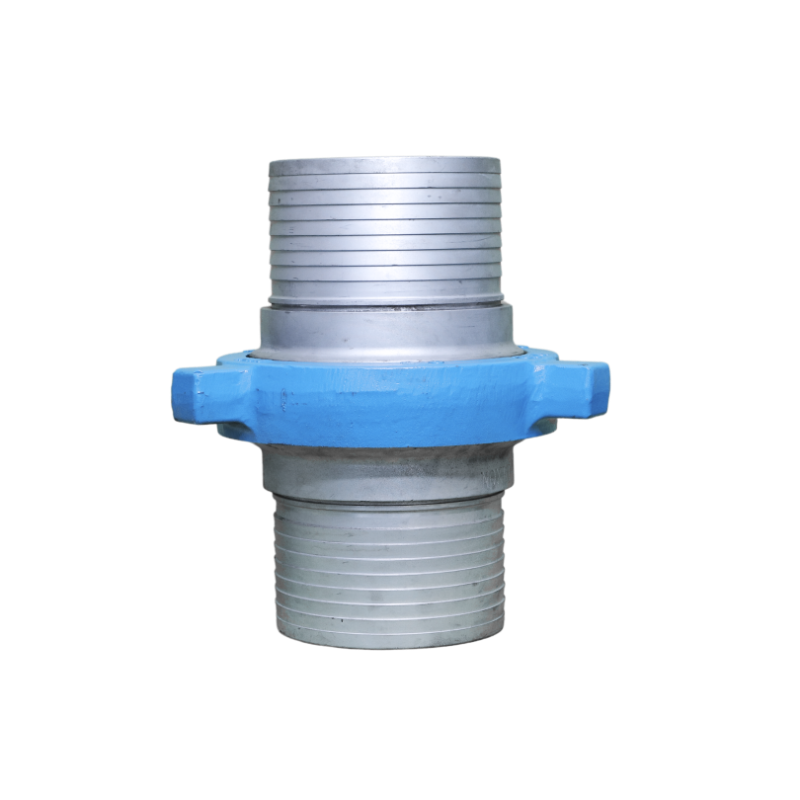

OFC/OFE Figure 206 Hose Fitting is constructed of high quality cast ductile iron. This union is also referred to as a Hose Barb Union. It features a union end connection that is interchangeable with a figure 200/206 connection, and it comes with an integral hose shank on both the male and female sub. The figure 206 union is designed to save time and money by eliminating the need to weld a hose nipple onto a figure 200/206 hammer union. This union is uniquely designed to be tested to twice the rated working pressure, which is often a requirement for hoses used in oilfield applications.
*All Working Pressures are Non-shock Cold Working Pressure Ratings (NSCWP)
